OUR VEHICLES

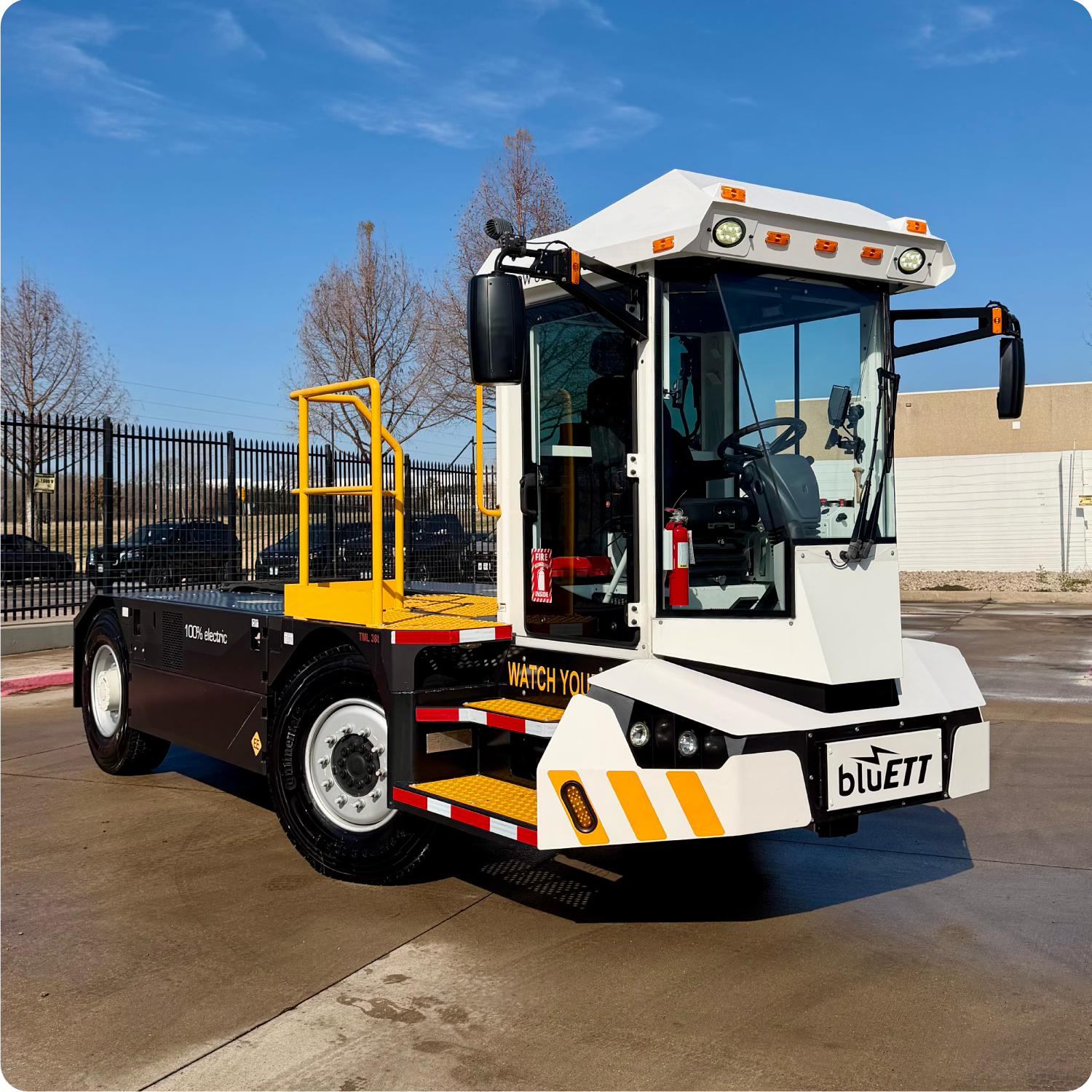

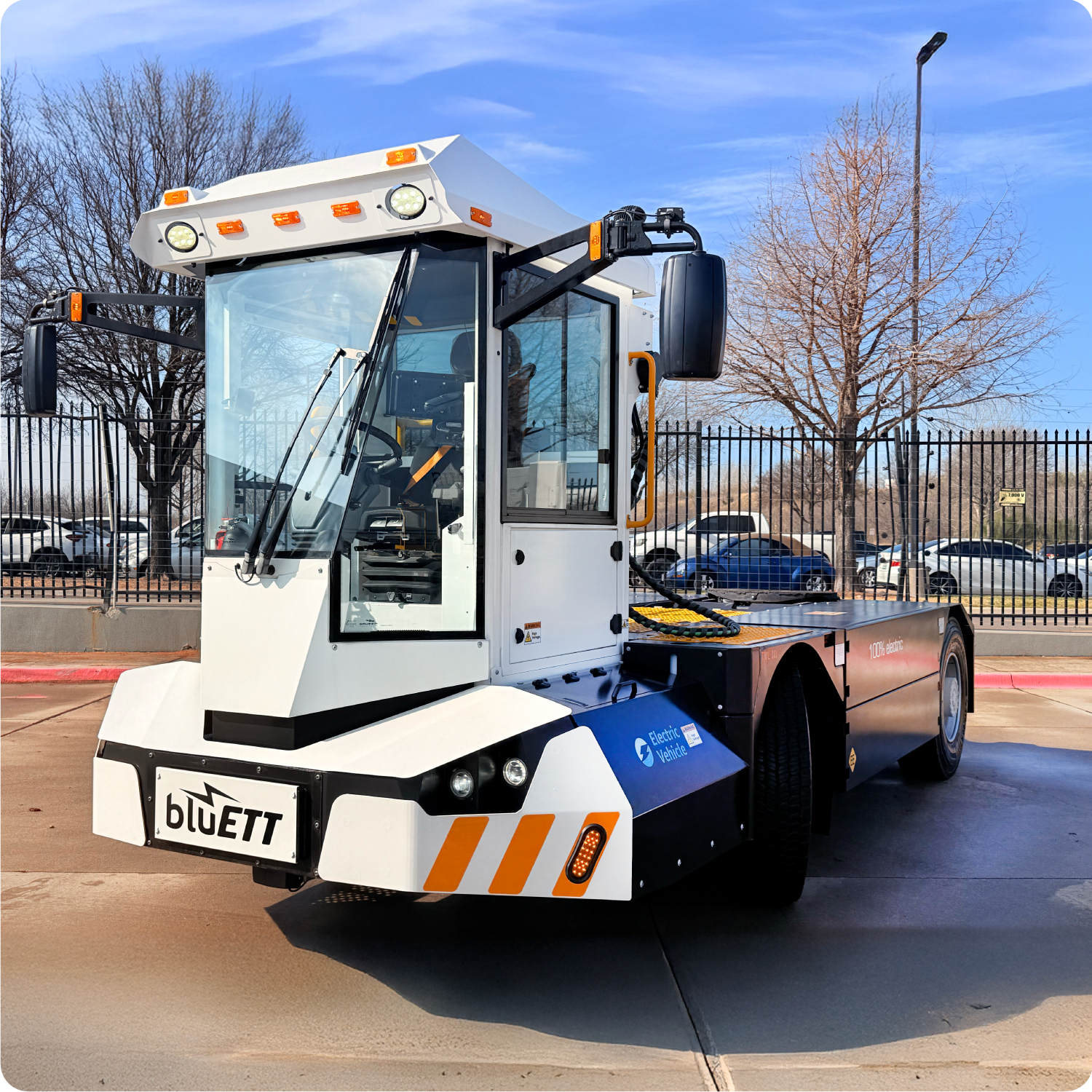

L38T ELECTRIC TERMINAL TRACTORS
Immediate
Deployment
Proven
Platform
Flexible
Leasing
U.S. Service
& Support
Key Features
Purpose-built electric fleet to meet operations and maintenance requirements of fulfillment centers, shipping ports, train yards, manufacturers, and more.
38T Towing Capacity
114 kWh battery
15 hr autonomy
30-60 min fast charge
80,000lbs GCWR
BluETT L38T — Technical Specifications
Body StyleGAUSSIN Type ATM
Drive Mode4 x 2
G.C.W.80,000 lbs
Overall Length6.253 m
Overall Width2.450 m
Height3.040 m
Platform Height1.110 m
Fifth Wheel Height1.159 m to 1.809 m (low position)
Lifting Stroke0.65 m
Wheel Base Range130 inches
Payload38T
Range (Hours)15.5 hrs @ 100% SOC / 12 hrs @ 80% SOC
Motor2x 55kW Bosch Electric Motors
Horsepower108 HP (80 kW)
Max Torque200 Nm (147 lb/ft.) per motor / 23,600 Nm (17,350 lb/ft.) rear axle
Rated Torque90 Nm (66 lb/ft.) per motor / 5,310 Nm (3,900 lb/ft.) per wheel
Top Speed15 mph (off-road / max posted site speed)
Gradeability16% @ GCW 60,000 lbs / 12% @ GCW 80,000 lbs
Hill Start Assist (HAS)Included
Power SteeringIncluded
EV Voltage Platform400V (Accepted by Amazon)
Charging PowerCapable of 100 kW
Dash Power Outlets(2) 12V · (2) USB-C
Battery TypeNMC
Battery Count4 Modules
Total Capacity114 kWh
Usable Capacity91 kWh (80%) / 114 kWh (100%)
Battery Warranty7 years or 145,600 kWh throughput (1,600 full cycles, 80% SOH)
Lifetime> 5,000 cycles
Emergency Battery Reserve0.2
Low Voltage Battery1x 12V and 1x 24V Starter Batteries
Thermal ManagementLiquid Cooled · Thermal Control Unit · Thermal Cover + Insulation
DC ChargerHigh Power DC via COMBO 1 — compatible with any COMBO CCS charger
DC Charging Time1 hour (0→100%) / 48 minutes (20→100%)
AC Charger1-phase CCS1 Type 1 (NACS optional — separately priced)
Charging Port LocationRear — 12 ft min from rear bumper to port
Charger CompatibilityCOMBO EV Platform (ABB / BTC / Chargepoint)
Charging Port LightIlluminating Light — Included
Charging Indicator LightIncluded
Regenerative BrakingIncluded
Automatic Air Tank DrainIncluded
Brake LampIncluded
Parking Brake + Door Open WarningAudible Warning
Reverse Speed Limit5 mph max
Max Steering Angle40°
Curb-to-Curb Diameter41' 3"
Curb-to-Curb Radius20' 8"
Wall-to-Wall Diameter (w/ mirrors)≈ 45' 10"
Wall-to-Wall Radius (mirrors)25' 3"
Wall-to-Wall Diameter (bumper, no mirror)≈ 44' 10"
Wall-to-Wall Radius (bumper only)24' 3"
Mirror Overhang55"
Measured Test Range60' 1"
Cab SuspensionIncluded
Front and Rear Tow HooksOption
Pintle HookOption
Front TiresPneumatic 315/80R22.5
Rear TiresPneumatic 315/80R22.5
Wheels — Disc Front & RearYes
Protection / SafetyROPS & FOPS Certified (ISO 3471 / SAE J10409) — Tubular Steel
Steering WheelTilt / Telescoping
Door Opening57" x 30"
Factory ACIncluded
Cabin FanOption

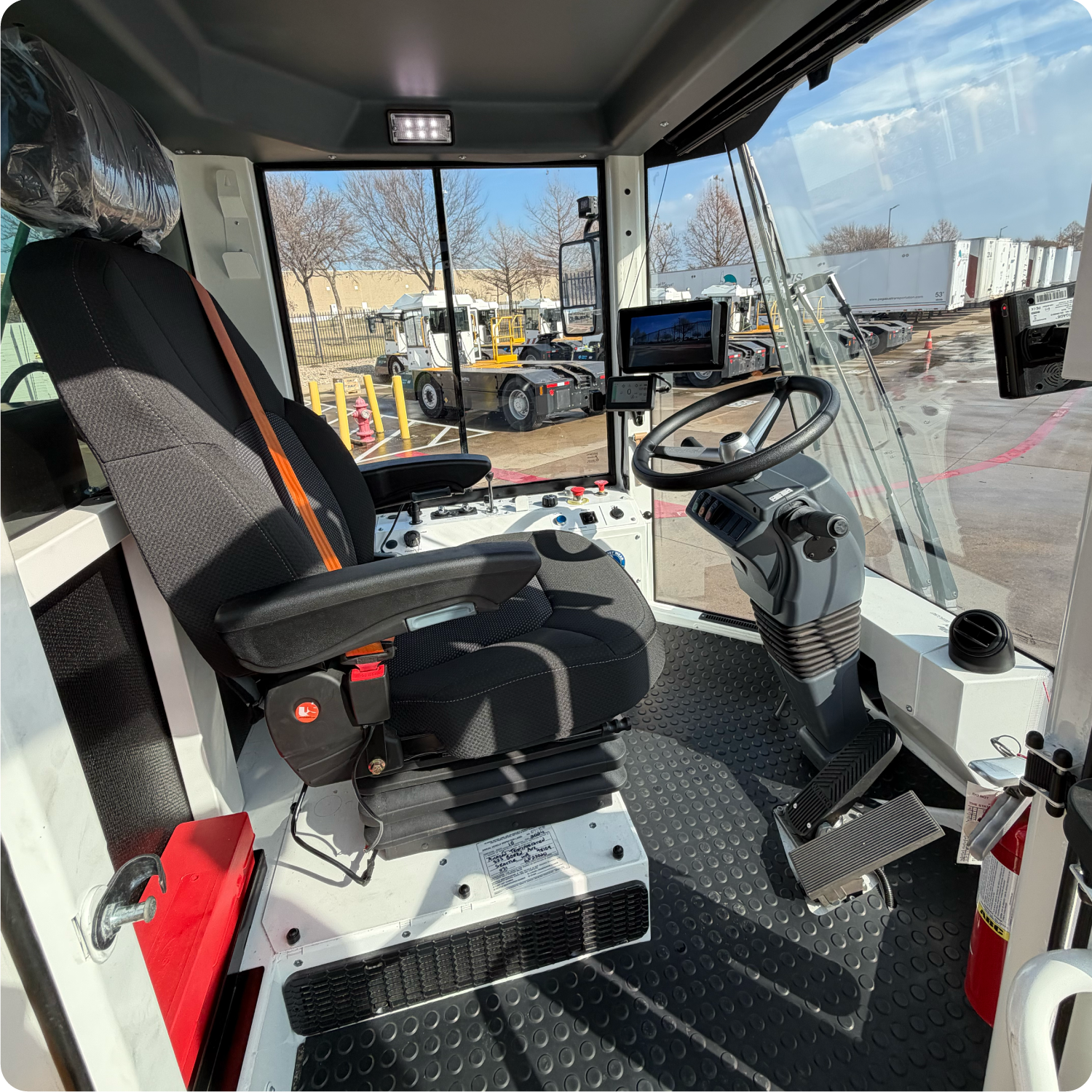

Driver's SeatAir Suspended & Adjustable · Heated (Option)
Seat MaterialCloth
Seatbelt3-Point Orange · Audible Warning / Vehicle Immobilized if Not Engaged
Side MirrorsHeated & Motorized Flat Mirrors
Heater / DefrosterIncluded
FloormatPVC
Cup Holder(s)Included
RAM Phone MountIncluded
Reading Light / Dome LightIncluded
Front WiperIncluded
Deck Access GrabhandlesIncluded
Shatter Proof Film on Rear WindowOptional

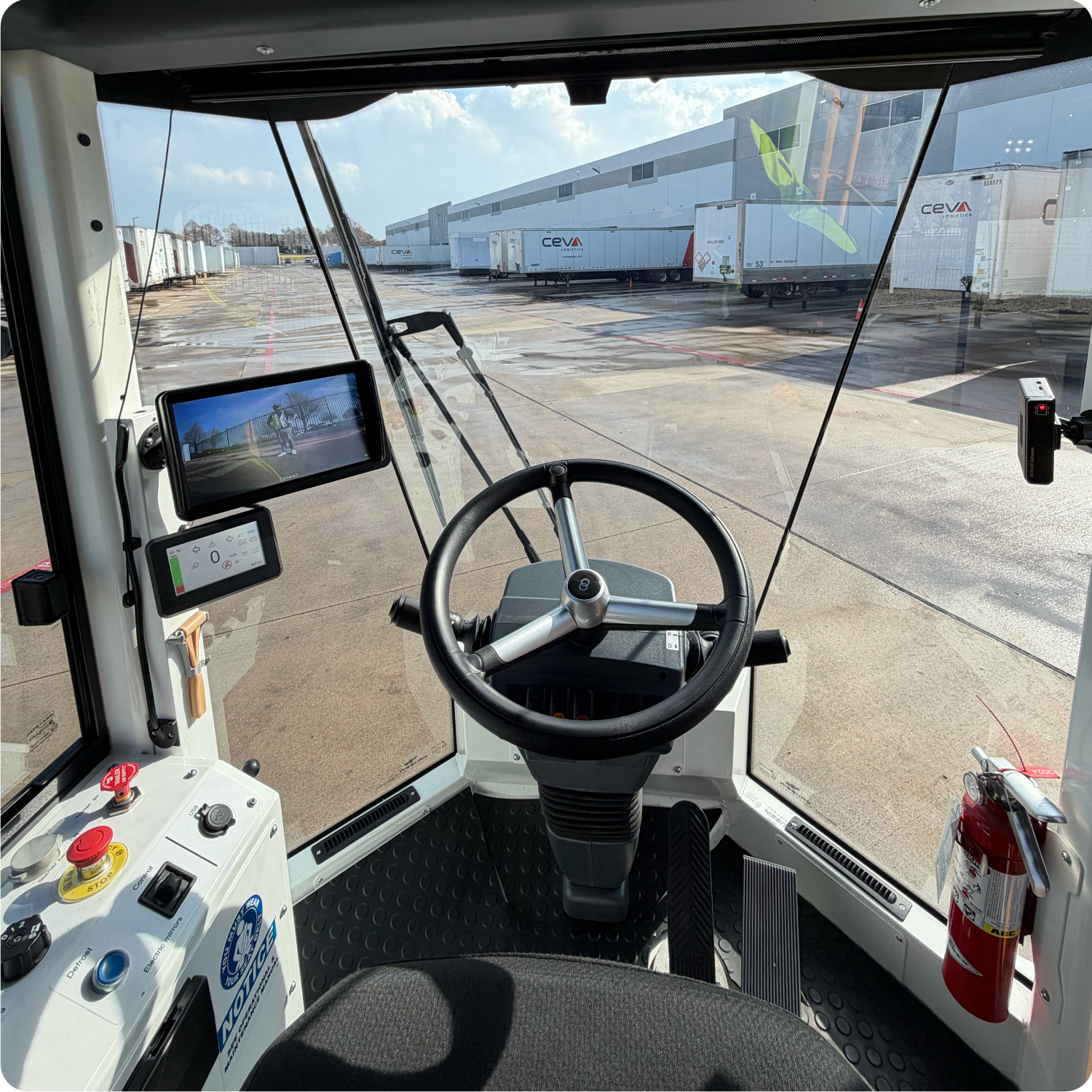

Digital DashboardCOBO Canview 3 Screen
Electronic Shift SystemIncluded
Keys / IgnitionRotary Ignition Switch (Keyless Start)
Climate ControlAC / Heater
Air Pressure GaugeIn-dash / Display (Compressed Air System Only)
SpeakersIncluded
AudioOption
CB Radio Pre-wireOption
Daytime Running LightsIncluded
Headlamps (High & Low Beam)Included
Front Clearance LampsIncluded
Front Identification / Spot LightsIncluded
Front Side Reflex ReflectorsIncluded
Amber Side Marker LightsIncluded
Side Clearance Lamps (Amber, 4-way)Recommended
Strobe LightOrange Rotating — Top-Center of Vehicle
Rear Flood LightIncluded
Tail LampIncluded
Rear Licence Plate LampsIncluded
Rear Reflectors / Conspicuity TapeIncluded
Step & Deck LightingIncluded (Button-Activated)
Reflective MarkingIncluded

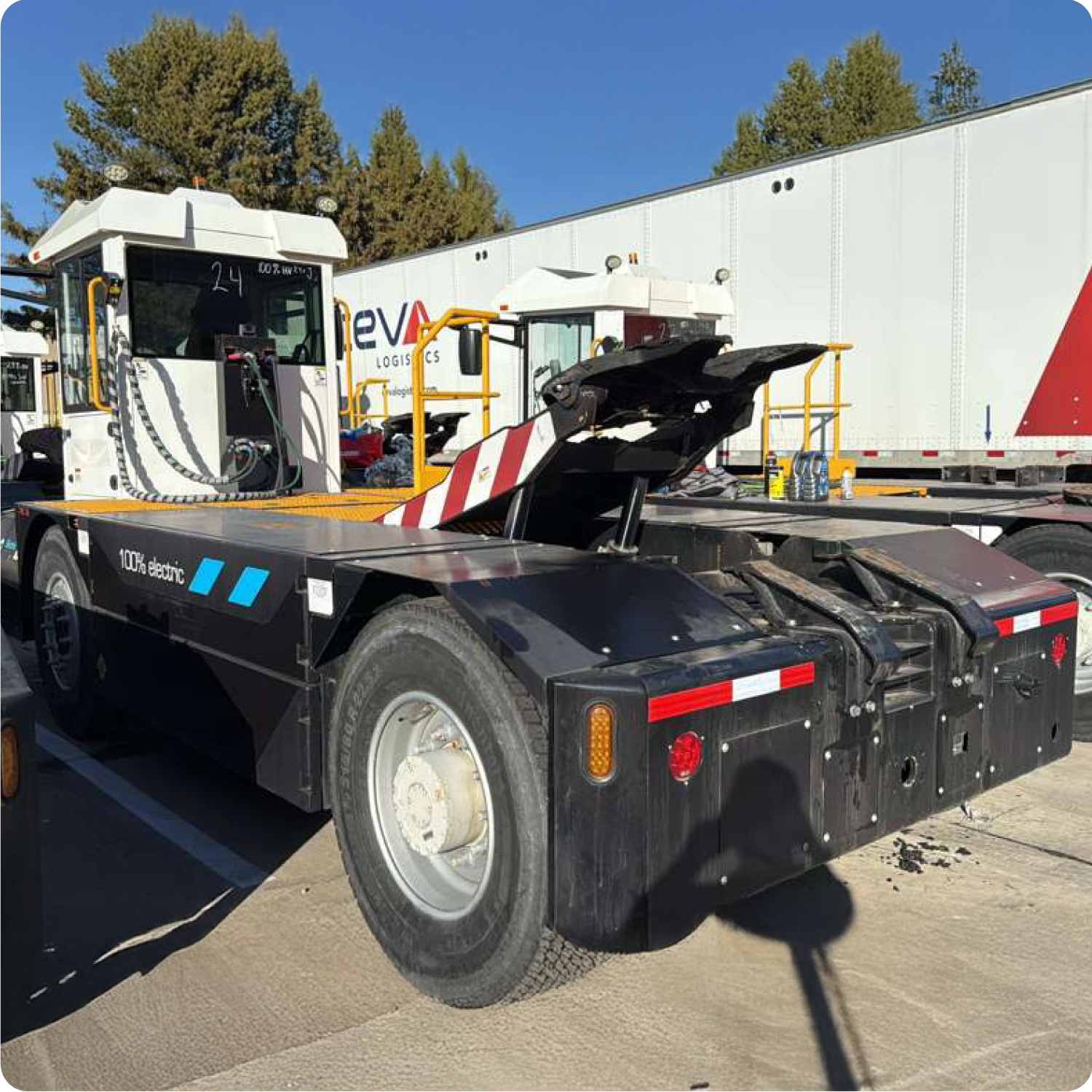

5th Wheel TypeSAF HOLLAND FW3510TR-EL (80,000 lbs) — Lift: 500 mm (20")
5th Wheel Coupling IndicatorLight ON when kingpin engaged & locked
5th Wheel LubricationSelf-Greasing — Easy Access Nipple (Autonomous Option)
5th Wheel Relief ValveIncluded
Remote 5th Wheel ReleaseRecommended
Air Line & Electrical Connectors18 ft Spiral-Wrapped
Braided Airlines18' with Spring (replaces plastic coiled)
Double Glad Handler ConnectorIncluded — L-bend & Threaded End
Hanger Hook / Hose HangerIncluded — EZ Claw
OBD InterfaceRP1226 Connectors · J1939 CAN Bus Connectivity
Smart Drive Dash CamIncluded
Remote DiagnosticsIncluded
High Voltage DisconnectIncluded
High Voltage Wire ColorOrange
Cooling System WarrantyBTMS Warranty Included
DOT ComplianceANSI B56-1 (OSHA) Off-Road · FMVSS Safety Items Adapted
Decal InstallationIncluded
License Plate InstallationIncluded
Engine Sound SimulatorFMVSS 141
Forward Collision WarningIncluded
HornElectric Horn
Reverse Speed Limit5 mph
Handrail (3-Point Contact)Included
Warning TriangleIncluded
Safety Devices
- In-cabin emergency stop button
- 12V cutout switch under driver seat
- Reflective zebra tape around vehicle
- Anti-slip grip tape on steps & walkways
- Backup alarm
- In-cabin fire extinguisher
- In-cabin emergency hammer
- 4 cameras for driver assistance
- Clearance reflectors
Step ConfigurationTwo Steps — RH Side, Low to Ground (<8")
Drive by WireAutonomous-Ready — Robotized Steering, Braking & Acceleration · AD CAN Layer for 3rd Party AD Software
Autonomous Capability
- Localization & Mapping
- Dynamic Obstacle Detection & Avoidance
- Path & Route Planning
- Tele-Operation
- V2X Communications
AD Software / HW Options
- Fleet Orchestration Software (YMS Integration)
- Robotic Arm for Trailer Coupling / Decoupling
- Autonomous Charging Integration
No Risk Onsite Pilot Program
Test our fleet onsite for 60-120 days before scaling.
We help you determine configurations best suited for your operation.
Fleet Assessment
Infrastructure Planning
Pilot Deployment
Performance Monitoring
Fleet Scaling
